Features:
It is dedicated to the production of physical foamed polyethylene insulated micro-coaxial cables, special cables and communication cables with the advantages of low loss and long life.
Products such as letter cables and data cables are especially suitable for the production of small coaxial cables. Such as: IEEE1394, CAT5E,
DVI, ATA, UL2919, etc.
Equipment characteristics:
Suitable for CATV, RG, SYWV, JIS series physical foam production or solid core extrusion.
Adaptation materials:
FM-PE, PE.
Quality standard:
Meet industry standards.
Foaming degree:
Imported high pressure nitrogen injection system (Max): 78%, low pressure ammonia injection system (Max): 70%.
quality control:
Equipped with outer diameter capacitance detection device, the whole process control product outer diameter, foaming degree and other process parameters.

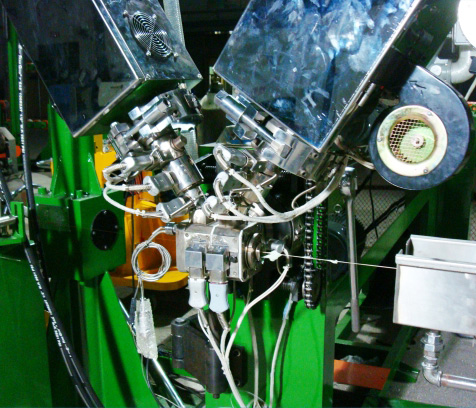

Head:
Assemble a special head for physical foaming.
